The Export version of the Mkiv Supra ceased production around October 1998 but the Japanese version of the Mkiv Supra has continued production to July 2002 when all production has stopped.

The Supra commemorative watch below was only available if you bought a Japanese Supra in Japan in 2002.

MKIV SUPRA BROCHURES


1993
1993 Options
1994
1995



1996
1996 Options
1996 SZ-R Brochure
1997



1998
1999
2000
2001



2002


MKIV SUPRA PRICES


1993
1995



1996
1996

2002


The Japanese twin turbo mkiv differs from the Export model in a number of area's. Known differences are listed in table below.


Mkiv Supra TT Comparisons
Details Japanese MKIV Export MKIV
Horsepower
Torque
Injectors
Injector Impedance
Inlet Cam Duration
Cam Degrees
Inlet Cam Lift
Airflow Measurement
 280 hp
323 ft/lb (1997 VVTi 338 ft/lb)
430 cc
High Impedance
224 deg
In Open 3 BTDC, Close 41 ABDC, Ex Open 52 BBDc, Close 4 ATDC
7.8mm
MAP sensor
 320 hp
315 ft/lb
540 cc
Low Impedance
233 deg
In Open 3 BTDC, Close 50 ABDC, Ex Open 52 BBDc, Close 4 ATDC
8.25mm
Airflow sensor
Sequential Turbo's
Turbine Size
Compressor Size
Turbine material
Scroll area (mm^2)
A/R ratio
 CT20A (Ceramic) see Note 1 below
60mm/48mm (inducer/exducer)
62mm/37mm (inducer/exducer)
Ceramic
600
0.42
 CT12B (Steel)
52mm/44mm (inducer/exducer)
58mm/39mm (inducer/exducer)
Steel
740
0.53
Drivers Side
Bonnet scoop
Side Indicators
Headlight Covers
Front Spoiler
Brakes - Front
Brakes - Rear
Traction Control
Torsen LSD
Diff Ratio (TT)
 Right
None
One behind Front Wheel
Plastic
Fixed and Retactable
pre 95 - 296mm post 95 - 323mm
pre 95 - 307mm post 95 - 324mm
ETCS
All 6 speeds, otherwise optional equipment
3.266
 Left(USA/Europe) else Right
(Only Non USA export model)
Two, behind both Front/Rear Wheel
Glass
Fixed Only
323mm
324mm
TCS
Standard equipment
3.133
Wheels - Front
(50mm offset) 		pre 95 - 16"x8 post 95 - 17"x8" 17"x8"
Wheels - Rear
(50mm offset) 		pre 95 - 16"x9" post 95 - 17"x9.5" 17"x9.5"
0 - 100 kph
400m
 5.7
13.80 @ 162 kph
 5.3
13.3 @ 173 kph


Note 1: The Japanese twin turbo uses ceramic (exhaust side only) shafts which can be replaced with no modifications by the steel CT20A (large version) turbine shafts.
These steel shafts are found in 2JZ-GTE Aristo's and some turbo diesel Toyotas.

Japanese Mkiv Production Changes
Date Frame No. Description
Dec 1992 0001010 Mkiv Supra pre-production test models
April 1993 0001063 Mkiv Supra production officially commenced (Toyota Motor Corporation Motomachi plant A21-A26)
May 1993 0001063 Mkiv Supra Sales officially commenced May 24th 1993
Aug 1994 0023410 SZR introduced, 17" wheels, 4 pot front/2 pot rear bigger brakes option available
May 1995 0029795 RZ re-labelled as RZS, RZS now small diff, RZ now has 17" wheels, bigger brakes option on all models, TT aerotops discontinued, Recaro seat option
May 1996 0035275 Facelift introduced, SZR 6 speed introduced, GZ discontinued, included Sport ABS with big brakes, SRS air bag now standard equipment, Getrag 2nd gear synchro improved, now aluminium radiator on RZ
April 1997 0041000 Approx. chassis number when Production plants A21-26 stopped production
May 1997 1000000 Production at Toyota Motor Corporation Kanto Auto Works Ltd, plants M21-22 started production. Chassis numbering re-started
Sept 1997 1000849 VVTi engine (now BEAMS previously LASRE), hot wire type air flow meter, REAS (Relative Absorber System) shock absorber system introduced, V160 changed to V161, adopted collision safe body GOA, adopted flex lockup equipped 4th gear automatic ECT-iE. Tiptronic steering wheel option available for automatics
Aug 1999 1004391 SZR aerotop discontinued. No aerotop, no more!, frame designation changed from E to GF
July 2002 1005856 Last Supra rolls off the production line. No Supra, no more?


Abbreviations
Abbreviation Description
2JZGE
2JZGTE
4A
5M
6M
A340E

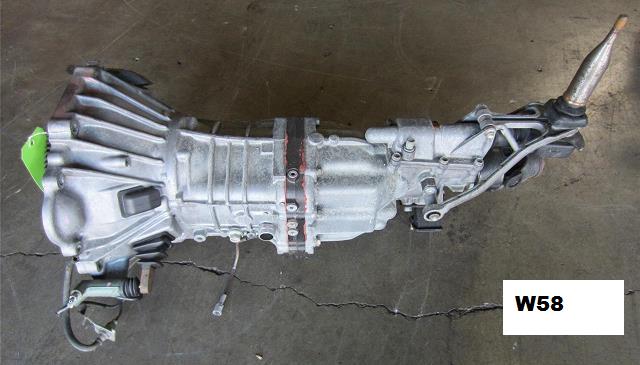

W58
V160
V161
AET
LB
EFI
DOHC
NA
TT
ECT
VVTi
REAS
 2997cc straight 6 non turbo
2997cc straight 6 twin turbo
4 speed Automatic transmission
5 speed Manual transmission
6 speed Manual transmission
4 speed Toyota Automatic transmission
5 speed Toyota Manual transmission
6 speed Getrag Manual transmission (early)
6 speed Getrag Manual transmission (later)
Liftback (AEro Top)
Liftback
Electronic Fuel Injection
Double OverHead Cams
Naturally Aspirated
Twin Turbochargers
Electronically Controlled Transmission
Variable Valve Timing intelligent
RElative Absorber System
Engine VIN Tag Information
MODEL Example Description
Model Country E E (1978 compliant chassis), GF (1998 compliant chassis), R (Export UK spec)
Chassis Code JZA80 JZA80 (Toyota Supra Mkiv)
Model Code A A (Supra Mkiv)
Body Type L J (Liftback with aero roof), L (Liftback)
Gearbox Type M F (6 speed Getrag manual), M (5 speed manual), P (4 speed automatic)
Body Grade V Q (RZ), S (SZR), V (SZ or RZS), Z (GZ)
Engine Type F F (EFI & DOHC), Z (EFI & DOHC & TT)
ENGINE Example Description
Engine Type 2JZ 2JZ (Twin Cam 24 Valve 2997cc straight 6)
Aspiration Type GE GTE (Twin Turbo), GE (Naturally Aspirated)
Engine Capacity (cc) 2997 2997cc (Capacity of straight 6 2JZ engine)
FRAME NO. Example Description
Frame Type JZA80 JZA80 (Mkiv Supra chassis, twin A-arms, coil over shock)
Frame Number 0022879 7 digit chassis number (001010-0041000, 1000000-1005857)
COLOR & TRIM Example Description
Paint Colors 3L2 Super White II (040), Silver Metallic (199), Dark Brown Gray Mica Metallic (1A1), Quick Silver Metallic Graphite (1B9), Black (202), Super Red IV (3L2), Super Red V (3P0), Super Bright Yellow (576), Grayish Green Mica Metallic (6N0), Dark Green Mica Metallic (6P3), Deep Teal Metallic (752), Blue Mica Metallic (8L5)
Interior Trim FC20 Front Cloth Seats (FA, FC, FF), Front Recaro Seats (FB, FK, FL), Front Leather Seats (LB, LC, LE, LF, LG), Unknown Trim (00), Black Plastic Trim (20), Dark Gray Plastic Trim(21)
TRANSMISSION Example Description
Transmission W58 W58 (Toyota 5 speed manual), A340E (4 speed auto), A343E (4 speed auto), V160/V161 (Getrag 6 speed manual)
AXLE Example Description
Crown Wheel Size A A (8'' - 200mm), B (8.7'' - 220mm)
Differential Ratio 01 01 (4.083:1), 02 (3.769:1), 03 (3.267:1), 04 (3.538:1)-UK, 05 (4.272:1)-USA, 07 (3.133)-USA
Differential Type A A (Standard open differential), B (Torsen LSD), D (Torsen LSD)
PLANT Example Description
Plant Number A22 Production location and line (Motomachi plant A21-A26, Kanto Auto Works Ltd M21-M22)


Japanese Model Production Dates Information
ChassisModelTransmissionRoofMay 93~Aug 94~May 95~April 96~Aug 97~Aug 98~Aug 99~July 2002
2JZ-GESZ5MTStandardE-JZA80-ALMVFGF-JZA80-ALMVF
4ATE-JZA80-ALPVFGF-JZA80-ALPVF
Aero RoofE-JZA80-AJPVF
SZ-R5MTStandardE-JZA80-ALMSF
6MTE-JZA80-ALFSFGF-JZA80-ALFSF
2JZ-GTERZ-S6MTStandardE-JZA80-ALFVZGF-JZA80-ALFVZ
4ATE-JZA80-ALPVZGF-JZA80-ALPVZ
RZ6MTE-JZA80-ALFQZGF-JZA80-ALFQZ
4ATE-JZA80-ALPQZ
GZE-JZA80-ALPZZ
Aero RoofE-JZA80-AJPZZ


Japanese Non Turbo Models Production Dates
Model E-JZA80- Engine Production Date Range Gearbox Body Type Grade
AJPVF
ALFSF
ALMSF
ALMVF
ALPVF
 2JZGE
2JZGE
2JZGE
2JZGE
2JZGE
 9305-9908
9605-0207
9408-9605
9305-0207
9305-0207
 4A
6M
5M
5M
4A
 AET
LB
LB
LB
LB
 SZ
SZR
SZR
SZ
SZ


Japanese Twin Turbo Models Production Dates
Model E-JZA80- Engine Production Date Range Gearbox Body Type Grade
AJPQZ
AJPZZ
ALFQZ
ALFVZ
ALFZZ
ALPQZ
ALPVZ
ALPZZ
 2JZGTE
2JZGTE
2JZGTE
2JZGTE
2JZGTE
2JZGTE
2JZGTE
2JZGTE
 9305-9505
9305-9505
9305-0207
9505-0207
9305-9505
9305-9505
9505-0207
9305-9605
 4A
4A
6M
6M
6M
4A
4A
4A
 AET
AET
LB
LB
LB
LB
LB
LB
 RZ
GZ
RZ
RZS
GZ
RZ
RZS
GZ


Worldwide Supra Production By Region
Region RHD LHD UKN Total
Canada 227 227
Europe 673 995 3 1671
GCC (Gulf Corp Council) 120 120
GEN (Europe General) 7 19 1 27
Japan 31575 31575
USA 11446 11446
Pre-Production 21 29 12 62
Unknown 102 102
TOTAL 32276 12836 118 45230
Worldwide Supra Production By Year
1992 29
1993 15901
1994 10256
1995 6863
1996 4767
1997 3304
1998 2085
1999 813
2000 468
2001 407
2002 337
TOTAL 45230
Worldwide Supra Production By Series
Series 1 (1992-1997) 34275
Series 2 (1997-2002) 10955
TOTAL 45230


Japanese Supra Production By Series
Series 1 (1992-1997) 22980
Series 2 (1997-2002) 8595
TOTAL 31575
Japanese Production By Color
Super White II (040) 6823
Silver Metallic (199) 9208
Dark Brown Gray Mica Metallic (1A1) 464
Quick Silver Metallic Graphite (1B9) 905
Black (202) 6652
Super Red IV (3L2) 3820
Super Red V (3P0) 57
Super Bright Yellow (576) 43
Grayish Green Mica Metallic (6N0) 1466
Dark Green Mica Metallic (6P3) 114
Deep Teal Metallic (752) 755
Blue Mica Metallic (8L5) 564
Unknown 704
TOTAL 31575
Japanese Production By Engine/Transmission
2JZ-GE Automatic 7282
2JZ-GE 5 speed 8786
2JZ-GE 6 speed 1439
TOTAL 2JZ-GE 17507
2JZ-GTE Automatic 4746
2JZ-GTE 6 speed 9314
TOTAL 2JZ-GTE 14060
Unknown 8
TOTAL 31575
Japanese Production By Transmission/Engine
2JZ-GE Automatic 7282
2JZ-GTE Automatic 4746
TOTAL Automatic 12028
2JZ-GE 5 speed 8786
TOTAL 5 speed 8786
2JZ-GE 6 speed 1439
2JZ-GTE 6 speed 9314
TOTAL 6 speed 10753
Unknown 8
TOTAL 31575


Worldwide Supra Production By Month
1992 First Chassis Number Production Per Month
November
December
 0001001 (Pre-production)
0001010
 9
20
1993 First Chassis Number Production Per Month
January 93
February
March
April
May
June
July
August
September
October
November
December
 0001030
0001032
0001059
0001063 (Production)
0001804
0003672
0005743
0008033
0009628
0011811
0013999
0015617
 2
27
4
741
1868
2071
2290
1595
2183
2188
1618
1314
1994 First Chassis Number Production Per Month
January 94
February
March
April
May
June
July
August
September
October
November
December
 0016931
0017762
0018731
0019951
0020911
0021772
0022778
0023410
0023981
0024772
0025720
0026586
 831
969
1220
960
861
1006
632
571
791
948
866
601
1995 First Chassis Number Production Per Month
January 95
February
March
April
May
June
July
August
September
October
November
December
 0027187
0027721
0028482
0029303
0029725
0030408
0031293
0032064
0032290
0032867
0033335
0033770
 534
761
821
422
683
885
771
226
577
468
435
280
1996 First Chassis Number Production Per Month
January 96
February
March
April
May
June
July
August
September
October
November
December
 0034050
0034322
0034672
0035017
0035275
0035587
0036146
0036956
0037239
0037660
0038114
0038486
 272
350
345
258
312
559
810
283
421
454
372
331
1997 First Chassis Number Production Per Month
January 97
February
March
April
May
June
July
August
September
October
November
December
 0038817
0039276
0039612
1000000
1000001
1000245
1000499
1000741
1000808
1001084
1001363
1001557
 459
336
762
1
244
254
242
67
276
279
194
190
1998 First Chassis Number Production Per Month
January 98
February
March
April
May
June
July
August
September
October
November
December
 1001747
1001976
1002235
1002538
1002693
1002870
1003109
1003358
1003457
1003545
1003675
1003780
 229
259
303
155
177
239
249
99
88
130
105
52
1999 First Chassis Number Production Per Month
January 99
February
March
April
May
June
July
August
September
October
November
December
 1003832
1003897
1004012
1004130
1004198
1004245
1004334
1004400
1004423
1004496
1004546
1004607
 65
115
118
68
47
89
66
23
73
50
61
38
2000 First Chassis Number Production Per Month
January 00
February
March
April
May
June
July
August
September
October
November
December
 1004645
1004679
1004748
1004811
1004859
1004889
1004923
1004950
1004966
1004985
1005040
1005093
 34
69
63
48
30
34
27
16
19
55
53
20
2001 First Chassis Number Production Per Month
January 01
February
March
April
May
June
July
August
September
October
November
December
 1005113
1005141
1005184
1005227
1005256
1005297
1005333
1005364
1005400
1005441
1005464
1005489
 28
43
43
29
41
36
31
36
41
23
25
31
2002 First Chassis Number Production Per Month
January 02
February
March
April
May
June
July
 1005520
1005547
1005594
1005655
1005696
1005756
1005806
 27
47
61
41
60
50
51
Total Worldwide Production 45230



Japanese MKIV Specifications
Engine
Model RZ, RZ-S, GZ (2JZ-GTE) SZ, SZ-R (2JZ-GE)
Max Power (kw) 209 @ 5600 (280 hp) 168 @ 6000 (225 hp)
Max Torque (nm) 1993-96 - 44.0 @ 3600 (323 ft/lb)
1997+ - VVTi 46.0 @ 3600 (338ft/lb) 		29.0 @ 4800 (213 ft/lb)
Engine Size (mm) 1993-96 - 865x700x675 (MT) 830x705x675 (AT)
1997+ VVTi - 865x700x675 (MT) 835x700x675 (AT) 		820x680x680
Denso Spark Plugs
 (1993-96) PK20R11
(1997+) PK20TR11
 PK16R11
NGK Spark Plugs
 (1993-96) BKR6EP11
(1997+) BKR6EKPB11
 BKR5EP11
Idle RPM
Oil Capicity (L)
Compression ratio
Induction
Transmission
Bore * Stroke(mm)
Capacity (cc)
 600-700
5.0
8.5:1
twin turbo
6 spd man/4 spd auto
86.0 * 86.0
2997
 650-750
5.2
10.0
n/a
5/6 spd man/4 spd auto
86.0 * 86.0
2997
Airflow sensor
 (1993-96) MAP
(1997+) Hot wire type airflow meter 		MAP/Airflow meter
Radiator core
 (93-1996/4) Copper NTR
(1996/4+) Aluminum NSR 		Aluminum NSR
Radiator size
 (93-1996/4) 737x400x41
(1996/4+) 737x399.2x27 		(Manual) 737x400x16
(Auto) 737x400x27
Starter Motor
Engine mounts 		12V - 1.2KW (1.4KW cold weather)
Liquid filled (1993/05 to 1995/05), Rubber filled(1995/05 on) 		12V - 1.2KW (1.4KW cold weather)
Liquid filled (1993/05 to 1995/05), Rubber filled(1995/05 on)
Radiator heat transfer
 (Copper - 6 spd) 82.7 kw/h
(Copper - auto) 87.9 kw/h
(Aluminium -96/4+) 92.0 kw/h 		?
Valves
Intake valve dia.
Intake valve lift
Exhaust valve dia.
Exhaust valve lift
Intake opening
Exhaust opening
 efi/twin cam/24v
33.5 mm
7.8 mm
29.0 mm
8.4 mm
3 deg BTDC - 41 deg ABDC
52 deg BBDC - 4 deg ATDC
 efi/twin cam/24v
33.5 mm
8.3 mm
29.0 mm
8.4 mm
3 deg BTDC - 52 deg ABDC
52 deg BBDC - 4 deg ATDC
Sequential turbos
Turbine Size
Compressor Size
Turbine material
Turbo Scroll area
Turbo A/R ratio
 CT20A (ceramic)
60/48 mm
62/39 mm
Ceramic
600 (mm^2)
0.42
 None
n/a
n/a
n/a
n/a
n/a




Alternator
Engine type 2JZ-GE 2JZ-GTE
Transmission MT AT MT AT MT AT
Year 1993/05 to 1994/04 1995/05 to 2002/07 1993/05 to 2002/07
Rated voltage (V) 12
Rated output (A) 90 80 90 100
Adjust voltage (V) 13.2 to 14.8 13.2 to 14.0 13.2 to 14.8
Output rotational speed (rpm) 1500 ? ?
Pulley diameter (mm) 63.9 ? ?
Weight (kg) 5.150 5.210 ? ?


Braking Options
Years Early years Middle years Late years
1993/05 to 1994/08 to 1995/05 to 1996/04 to 1997/8 to 2002/07
17 inches brake caliper SZ Option
SZ-R Option
RZ-S Option
RZ Option Standard
GZ Option
G-sensor with Four-wheel ABS SZ Option
SZ-R Standard
RZ-S Standard
RZ Standard
GZ Standard
Four-wheel ABS SZ Standard
SZ-R Standard
RZ-S Standard
Linear G-sensor with 4-wheel ABS Sports SZ Option
SZ-R Option
RZ-S Option
RZ Standard


Brakes
Type
Master Cylinder Diameter
 16" wheel type
25.4mm
 17" wheel type
(94/8-96/4) 25.4mm, (96/4+) 26.9mm
Front Brakes - type
Front Brakes - pot diameter
Front Brakes - pot number
Front Brakes - pad area
Front Brakes - rotor size
Front Brakes - rotor minimum
 PE45T
44.4mm
2 pot
59 cm2
296.0mm x 32.0mm
30.0mm thick
 S12W
42.8mm
4 pot
64 cm2
323.0mm x 30.0mm
28.0mm thick
Rear Brakes - type
Rear Brakes - pot diameter
Rear Brakes - pot number
Rear Brakes - pad area
Rear Brakes - rotor size
Rear Brakes - rotor minimum
 PE43R
42.8mm
1 pot
33 cm2
307.0mm x 16.0mm
15.0mm thick
 S11
40.4mm
2 pot
35 cm2
324.0mm x 16.0mm
15.0mm thick
Handbrake - inside diameter
Handbrake - pad area
Handbrake - size
 190mm
45 cm2
181x25.0x2.5mm
 190mm
45 cm2
181x25.0x2.5mm
Wheels - front
Wheels - rear
Tyres - front
Tyres - rear
 16x8JJ aluminum
16x9JJ aluminum
225/50ZR16
245/50ZR16, 245/45ZR16
 17x8JJ aluminum
17x9.5JJ aluminum
235/45ZR-17
255/45ZR-17


Braking Performance (RZ)
100 kph - 0
130 kph - 0
 120 ft
225 ft


Chassis
Info
ABS
Traction control
Turning circle (m)
Drive
Suspension - front
Suspension - rear
Steering
Kerb Mass (kg)
Fuel tank (l)
CD
 2JZ-GTE
Yes
Yes (RZ/GZ)
10.8 (35.5 ft)
Rear
wishbones, coils, anti-roll bars
wishbones, coils, anti-roll bars
Rack & Pinion (power assisted)
1490 - 1510 (RZ/GZ)
70 (15.4 gall)
0.33 (RZ/GZ)
 2JZ-GE
Optional on SZ
n/a
10.8 (35.5 ft)
Rear
wishbones, coils, anti-roll bars
wishbones, coils, anti-roll bars
Rack & Pinion (power assisted)
1430-1470 (SZ)
70 (15.4 gall)
0.30 (SZ)


Clutch
Engine
Gearboxs
Plate (mm)
Pressure (kg)
Plate Dimensions (mm)
Friction area (cm2)
Stroke (mm)
Ratio
 2JZ-GTE
V160, V161
250
1060
250x150x4.0
314
135
5.4
 2JZ-GE
W58, V161
236
700
(W58) 236x150x3.5, (V161) 236x150x4.0
260
135
5.4


Colors
Year 1993/5 to 1994/8 to 1995/5 to 1996/4 to 1997/8 to 1998/8 to 1999/8 to 2000/? ~ 2001/? ~
Color Super White II (040)
Black (202)
Super Red IV (3L2)
Silver metallic (199)
Deep Teal Metallic (752)
Dark gray mica browser Diminished Metallic (1A1)
Dark Green Mica Metallic (6P3)
Grayish Green Mica Metallic (6N0)
Blue Mica Metallic (8L5)
Silver metallic graphite (1B9)
Super Bright Yellow (576) ?


Differential
Engine2JZ-GE2JZ-GTE
Period1993/5 - 2002/71993/5 - 1996/41996/5 - 2002/71993/5 - 2002/71993/5 - 1996/41996/5 - 2002/7
Transmission5MT4AT5MT4AT5MT4AT6MT4AT4AT6MT4AT6MT
Axle codeA01AA01AA01BA01BA01BA01BA02BA02AA02BB03BA02BA03B
TypeNormalTorsen LSDNormalTorsen LSD
wormhelicalwormhelical
Differential gearsCrown wheel8" (200mm)8.7" (220mm)8" (200mm)
Reduction gear ratio4.0833.7693.2663.7693.266
Crown wheel teeth49
Pinion teeth1213151315
Differential mechanismHelical gears-68-68
Number of pinions2-2-
OilNameSX
Capacity (L)1.35







Dimensions (mm)
Length
Width
Height
Wheelbase
Track (front/rear)
Ground Clearance
 4,520
1,810
1,275
2,550
1,520 / 1,525
130

ECU PINOUTS


Japanese
Export


Fabrics
Trim code Seat material Interior color
FA20 Fabric Black
FB20 Recaro Black
FC20 Fabric Black
FF20 Fabric Black
FK20 Recaro Black
FL20 Recaro Black
LC20 Genuine leather Black
LE20 Genuine leather Black


Performance Standing Start (RZ)
0 - 60 kph
0 - 80 kph
0 - 100 kph
0 - 120 kph
400 m
 2.7
4.2
5.7
8.0
13.80 @ 162 kph (100.7 mph)





Performance Rolling Start (RZ)
Rolling start
40 - 70 kph
60 - 90 kph
80 - 110 kph
100 - 130 kph
 3rd
3.2
3.0
2.9
2.9
 4th
4.4
3.7
3.6
3.7
 5th
6.5
5.5
4.8
5.2
 6th
9.9
8.6
7.3
7.0


Propeller shaft
Engine type 2JZ-GE 2JZ-GTE
Transmission 6MT 5MT 4AT 6MT 4AT
Diameter x length between joints (mm) Front side 583x60.5 520x60.5 446x60.5 583x60.5 495x60.5
Rear side 583x60.5 569x60.5 583x60.5 606x60.5
Joint number 3


Radiator
Engine type 2JZ-GE 2JZ-GTE
Transmission MT AT MT AT MT AT
Year 1993/05 to 1996/04 to 1996/04 to
Core shape Aluminum NSR Copper NTR Aluminum NSR
Fin pitch (mm) 2.5 3.5 3.5 3.0 2.5
Core Dimensions (mm) [W x H x thickness] 737x400x16 737x400x27 737x400x41 737x399.2x27
Dry weight (kg) 2.73 4.21 7.65 8.5 3.95 4.41
Cooling water capacity (L) 1.5 2.5 3.08 2.95 ? ?
Cooling water total capacity (L) [required amount of replacement] 7.3 8.3 9.5 9.5 8.9 8.8
Heat dissipation (kW {kcal / h}) Low-speed condition ? 46.1 {39700} 49.4 {42500} 48.8 {42000}
High-speed condition ? >82.7 {71200} 87.9 {75600} 92.0 {79100}
Oil cooler Core shape Double tube 35 mm double-pipe 35 mm double-pipe
Oil capacity (L) 0.1 0.1 0.1
Heat dissipation (kW {kcal / h}) ? 1.98 {1700} 1.98 {1700}
Electric fan Fan Diameter (mm) 172
Number of blades 7
Voltage (V) 12
Current (A) 3.5
Rotational speed (rpm) 2500
Rated input (W) 80W
Quantity 1 2


Tires and Wheels
Year Early years Middle years Late years
1993/5 to 1994/8 to 1995/5 to
Front tire SZ 225/50ZR16 225/50ZR16 92V
Rear tire 225/50ZR16 225/50ZR16 92V
Front wheel 16x8JJ aluminum
Rear wheel 16x8JJ aluminum
Rear tire All other 16 inch models except for the SZ 245/50ZR16 245/45ZR16
Rear wheel 16x9JJ aluminum
Front tire 17 inches brake equipped vehicles - 235/45ZR17
Rear tire - 255/40ZR17
Front wheel - 17x8JJ aluminum
Rear wheel - 17x9.5JJ aluminum


Tools
Overseas JZA80's came with the following tools:
- Lut nut wrench
- Jack handle
- Jack
- Targa toolkit (if applicable)
- Wheel chock (09184-00010)
- Pliers (Up to 05/96 production only, Series 1) (99913-11500)
- 8mm / 10mm Wrench (Up to 05/96 production only, Series 1) (99914-10810)
- 12mm / 14mm Wrench (Up to 05/96 production only, Series 1) (99914-11214)
- Flathead / Philips Screwdriver (Up to 05/96 production only, Series 1) (99915-10700)
- Spark plug removal wrench (Up to 05/96 production for some European / Middle East / Other countries outside of Japan and North America) (09155-74010)







Transmission Production
Transmission Years 1993/05 to 1996/05 to 1997/09 to 2002/07
1993/05 to 1994/08 to 1995/05 to
Manual SZ 5MT (W58)
SZ-R 5MT (W58) 6MT (V161)
RZ 6MT (V160) 6MT (V161)
RZ-S
Automatic SZ A340E (ECT-S)
GZ A340E (ECT-iS) -
RZ A340E (ECT-iS) -
RZ-S - A340E (ECT-iS) A340E (ECT-iE)


Transmission Types
Manufacturer
 Getrag
 Toyota
 Toyota
Engine/Gearbox
 2JZ-GTE 6 Speed V160
2JZ-GTE 6 Speed V161
2JZ-GE 6 Speed V161
 2JZ-GE 5 Speed W58
 2JZ-GE Auto - A340E (ECT-S)
2JZ-GTE Auto - A340E (ECT-iS)
2JZ-GTE Auto - A340E (ECT-iE)
Type
First
Second
Third
Fourth
Fifth
Sixth
Reverse
Final Drive
 V160 / V161
3.827 / 3.724
2.360 / 2.246
1.685 / 1.541
1.312 / 1.205
1.000 / 1.000
0.793 / 0.818
3.280 / 3.192
3.266 (TT), 3.769 (NA)
 W58
3.285
1.894
1.275
1.000
0.783
n/a
3.768
4.083 (NA)
 A340E
2.804
1.531
1.000
0.705
n/a
n/a
2.393
3.769 (TT), 4.083 (NA)
Oil (L)
 1.8
 2.6
 8.2-8.3 (TT), 7.2 (NA)













Weights by Model and Option (O=optional, S=standard)
Classification division number Grade Specifications Symbol Super Live Sound System Four-wheel ABS Air bag 17 inches brake Front axle [kg] Rear axle [kg] Vehicle weight [kg]
001 SZ ALMVF - - - - 740 670 1410
002 SZ ALMVF O - - - 740 680 1420
003 SZ ALMVF - O - - 750 670 1420
004 SZ ALMVF - - O - 750 670 1420
005 SZ ALMVF O O - - 750 680 1430
006 SZ ALMVF O - O - 750 680 1430
007 SZ ALMVF - O O - 760 670 1430
008 SZ ALMVF O O O - 760 680 1440
009 SZ ALPVF - - - - 750 670 1420
010 SZ ALPVF O - - - 750 680 1430
011 SZ ALPVF - O - - 760 670 1430
012 SZ ALPVF - - O - 760 670 1430
013 SZ ALPVF O O - - 760 680 1440
014 SZ ALPVF O - O - 760 680 1440
015 SZ ALPVF - O O - 770 670 1440
016 SZ ALPVF O O O - 770 680 1450
017 SZ AJPVF - - - - 760 690 1450
018 SZ AJPVF O - - - 760 700 1460
019 SZ AJPVF - O - - 770 690 1460
020 SZ AJPVF - - O - 770 690 1460
021 SZ AJPVF O O - - 770 700 1470
022 SZ AJPVF O - O - 770 700 1470
023 SZ AJPVF - O O - 780 690 1470
024 SZ AJPVF O O O - 780 700 1480
025 RZ ALFQZ - S - - 810 680 1490
026 RZ ALFQZ O S - - 820 690 1510
027 RZ ALFQZ - S O - 830 680 1510
028 RZ ALFQZ O S O - 830 690 1520
029 RZ ALPQZ - S - - 830 680 1510
030 RZ ALPQZ O S - - 830 690 1520
031 RZ ALPQZ - S O - 840 680 1520
032 RZ ALPQZ O S O - 840 690 1530
040 GZ ALPZZ S S S - 840 700 1540
042 GZ AJPZZ S S S - 850 720 1570
043 SZ-R ALMSF - S - - 750 680 1430
044 SZ-R ALMSF O S - - 750 690 1440
045 SZ-R ALMSF - S O - 760 680 1440
046 SZ-R ALMSF O S O - 760 690 1450
051 RZ ALFQZ - S - O 820 690 1510
052 RZ ALFQZ O S - O 830 700 1530
053 RZ ALFQZ - S O O 840 690 1530
054 RZ ALFQZ O S O O 840 700 1540
055 RZ ALPQZ - S - O 840 690 1530
056 RZ ALPQZ O S - O 840 700 1540
057 RZ ALPQZ - S O O 850 690 1540
058 RZ ALPQZ O S O O 850 700 1550
066 GZ ALPZZ S S S O 850 710 1560
068 GZ AJPZZ S S S O 860 730 1590
069 SZ ALMVF - - - O 750 680 1430
070 SZ ALMVF O - - O 750 690 1440
071 SZ ALMVF - O - O 760 680 1440
072 SZ ALMVF - - O O 760 680 1440
073 SZ ALMVF O O - O 760 690 1450
074 SZ ALMVF O - O O 760 690 1450
075 SZ ALMVF - O O O 770 680 1450
076 SZ ALMVF O O O O 770 690 1460
077 SZ ALPVF - - - O 760 680 1440
078 SZ ALPVF O - - O 760 690 1450
079 SZ ALPVF - O - O 770 680 1450
080 SZ ALPVF - - O O 770 680 1450
081 SZ ALPVF O O - O 770 690 1460
082 SZ ALPVF O - O O 770 690 1460
083 SZ ALPVF - O O O 780 680 1460
084 SZ ALPVF O O O O 780 690 1470
085 SZ AJPVF - - - O 770 700 1470
086 SZ AJPVF O - - O 770 710 1480
087 SZ AJPVF - O - O 780 700 1480
088 SZ AJPVF - - O O 780 700 1480
089 SZ AJPVF O O - O 780 710 1490
090 SZ AJPVF O - O O 780 710 1490
091 SZ AJPVF - O O O 790 700 1490
092 SZ AJPVF O O O O 790 710 1500
093 RZ-S ALFVZ - S - - 810 680 1490
094 RZ-S ALFVZ O S - - 820 690 1510
095 RZ-S ALFVZ - S - O 820 690 1510
096 RZ-S ALFVZ - S O - 830 680 1510
097 RZ-S ALFVZ O S O - 830 690 1520
098 RZ-S ALFVZ O S - O 830 700 1530
099 RZ-S ALFVZ - S O O 840 690 1530
100 RZ-S ALFVZ O S O O 840 700 1540
101 RZ-S ALPVZ - S - - 830 680 1510
102 RZ-S ALPVZ O S - - 830 690 1520
103 RZ-S ALPVZ - S O - 840 680 1520
104 RZ-S ALPVZ O S O - 840 690 1530
105 RZ-S ALPVZ - S - O 840 690 1530
106 RZ-S ALPVZ O S - O 840 700 1540
107 RZ-S ALPVZ - S O O 850 690 1540
108 RZ-S ALPVZ O S O O 850 700 1550
109 SZ ALMVF - S S - 760 670 1430
110 SZ ALMVF O S S - 760 680 1440
111 SZ ALMVF - S S O 770 680 1450
112 SZ ALMVF O S S O 770 690 1460
113 SZ ALPVF - S S - 770 670 1440
114 SZ ALPVF O S S - 770 680 1450
115 SZ ALPVF - S S O 780 680 1460
116 SZ ALPVF O S S O 780 690 1470
117 SZ AJPVF - S S - 780 690 1470
118 SZ AJPVF O S S - 780 700 1480
119 SZ AJPVF - S S O 790 700 1490
120 SZ AJPVF O S S O 790 710 1500
121 SZ-R ALFSF - S S - 770 680 1450
122 SZ-R ALFSF O S S - 770 690 1460
123 SZ-R ALFSF - S S O 780 690 1470
124 SZ-R ALFSF O S S O 780 700 1480
125 RZ-S ALFVZ - S S - 820 670 1490
126 RZ-S ALFVZ O S S - 820 680 1500
127 RZ-S ALFVZ - S S O 830 680 1510
128 RZ-S ALFVZ O S S O 830 690 1520
129 RZ-S ALPVZ - S S - 830 670 1500
130 RZ-S ALPVZ O S S - 830 680 1510
131 RZ-S ALPVZ - S S O 840 680 1520
132 RZ-S ALPVZ O S S O 840 690 1530
133 RZ ALFQZ - S S S 830 680 1510
134 RZ ALFQZ O S S S 830 690 1520
