Engine Code Diagnostic Procedures


12 - G, NE Signal Circuit No. 1

13 - G, NE Signal Circuit No. 2

14 - Ignition Signal Circuit

16 - ECT Control Signal Malfunction

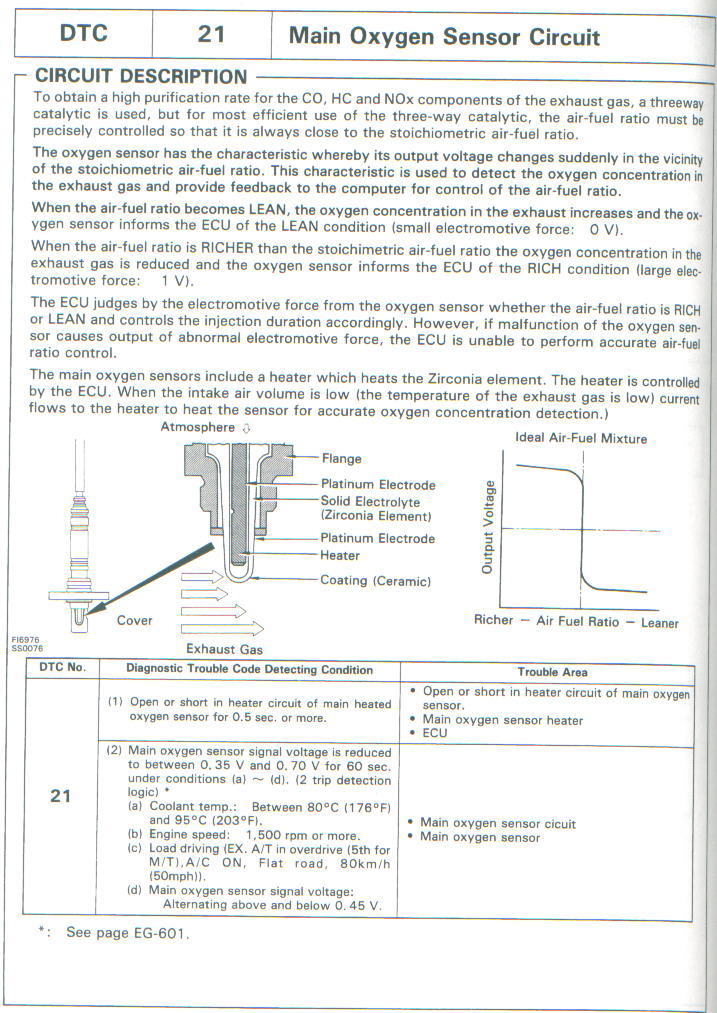

21 - Main Oxygen Sensor Circuit

22 - Water Temp Sensor Circuit

24 - Intake Air Temp Sensor

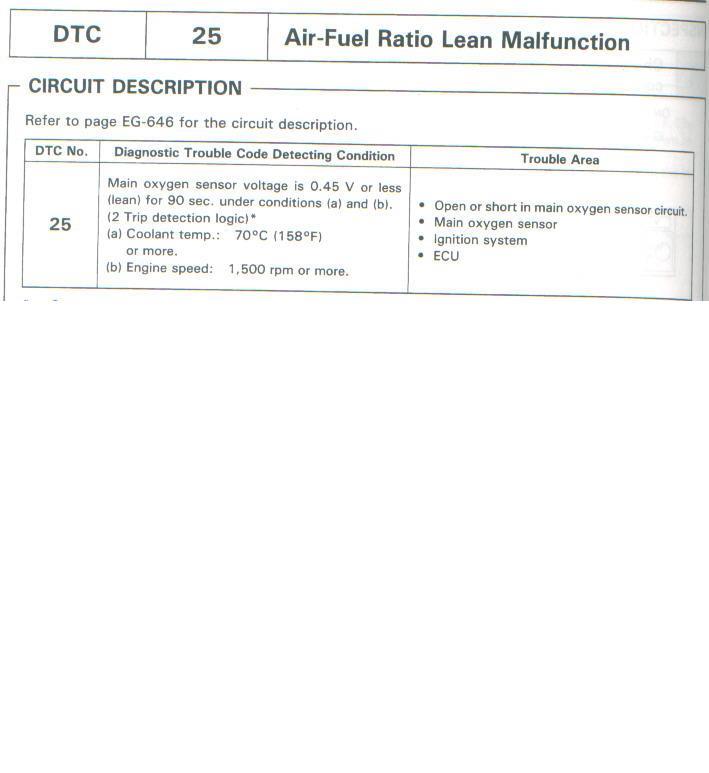

25 - Air Fuel Ratio Lean Malfunction



27 - Sub Oxygen Sensor

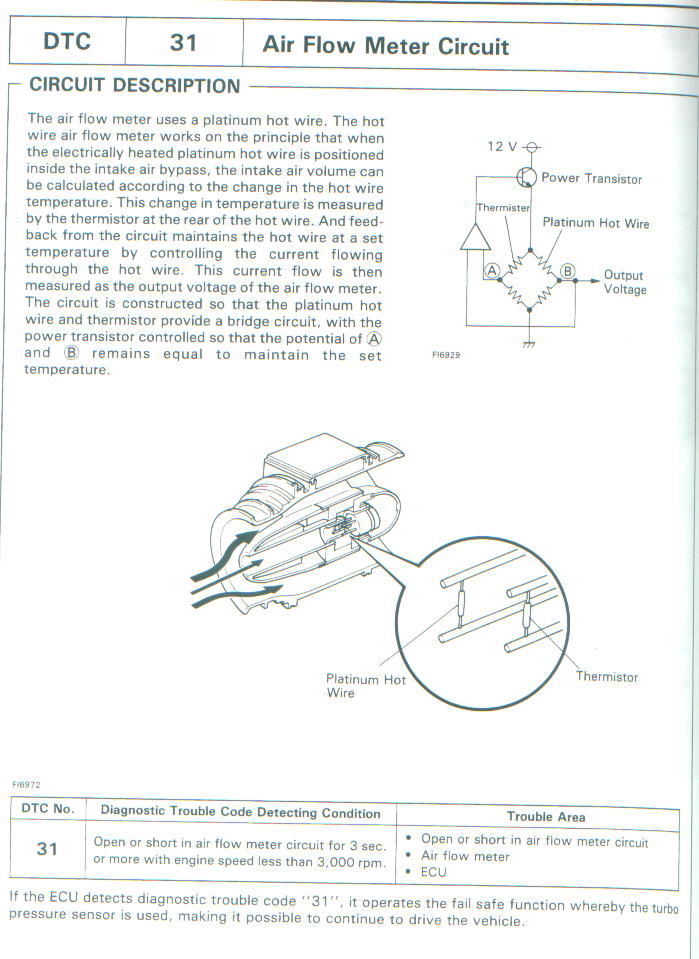

31 - Air Flow Meter

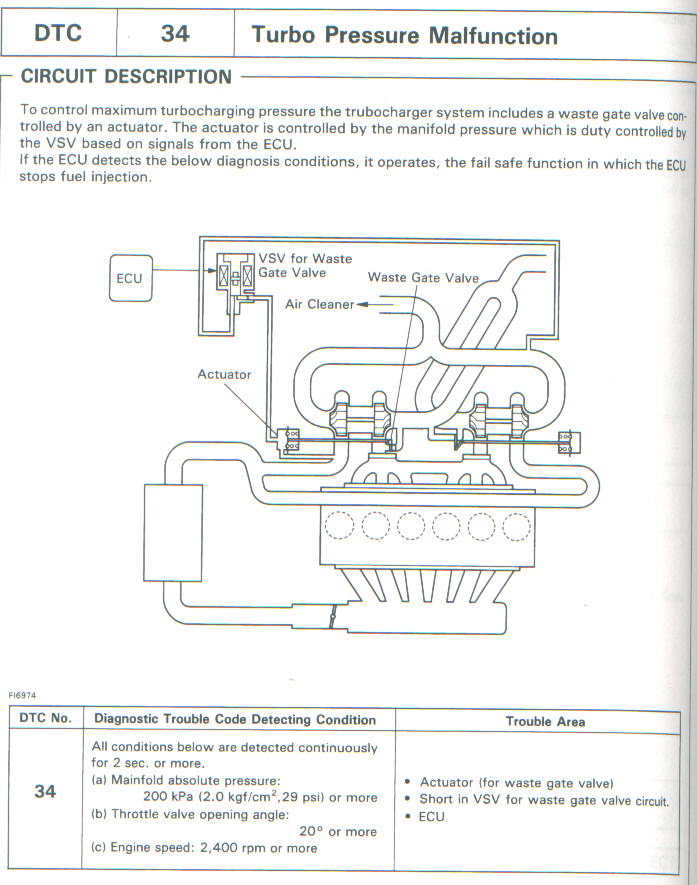

34 - Turbo Pressure Malfunction

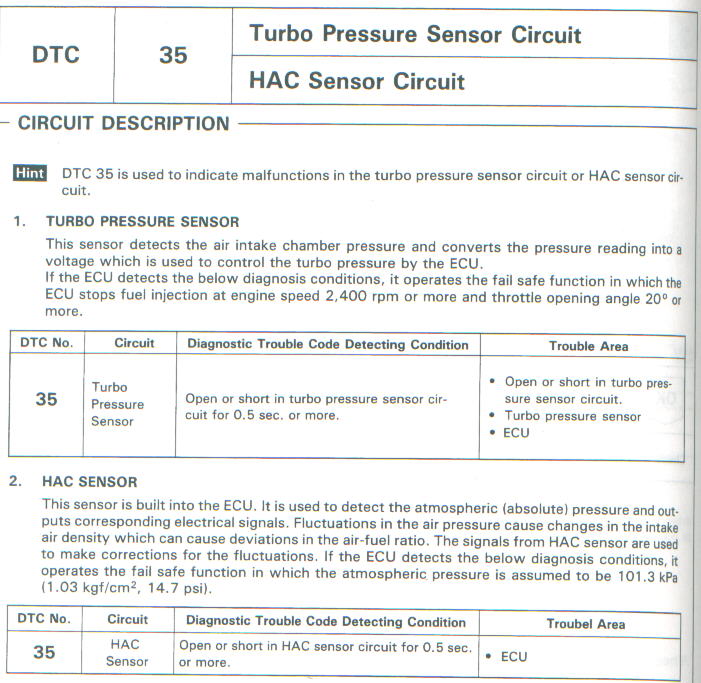

35 - Turbo Pressure Sensor



41, 47 - Throttle Position

42 - No. 1 Speed Sensor

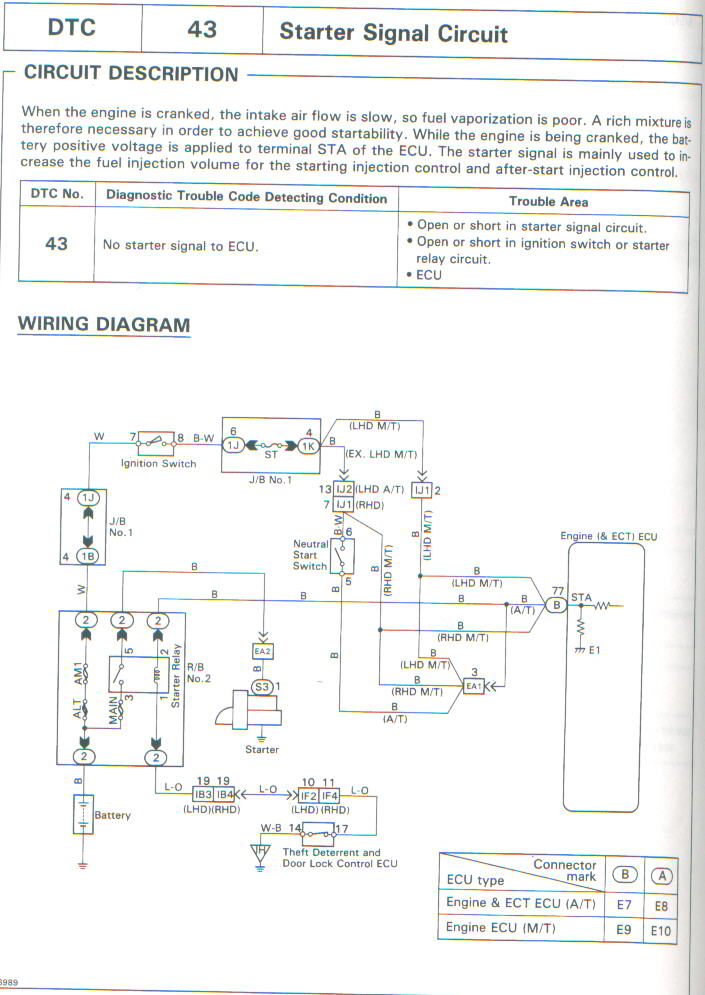

43 - Starter Signal Circuit

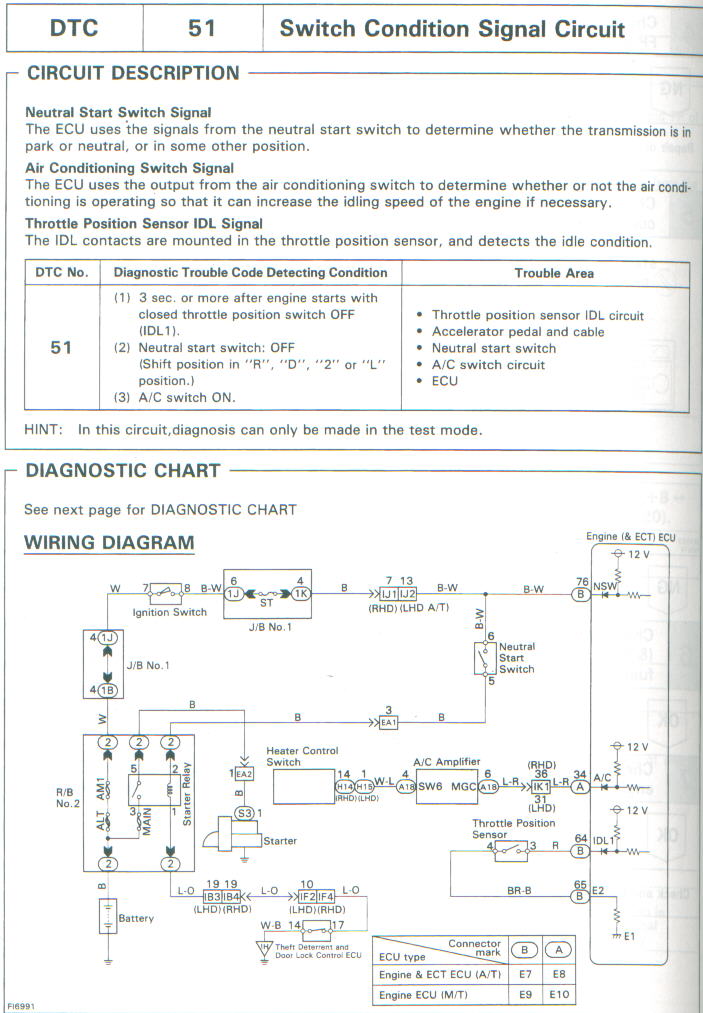

51 - Switch Condition Signal



52, 53, 55 - Knock Sensor

78 - Fuel Pump Control
